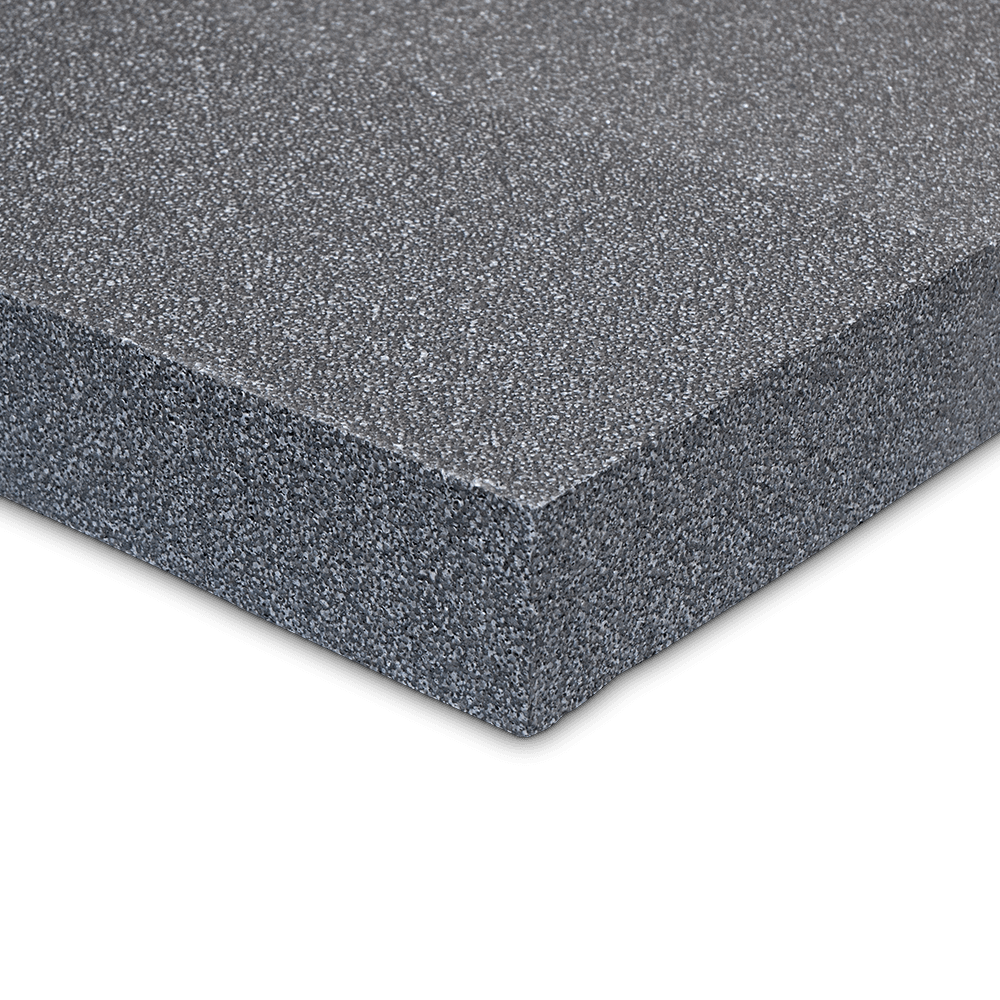

EPS 100 Graphite Gray

Expanded graphite polystyrene

Insulating material of high thermal resistance and high mechanical strength. Produced from expanded polystyrene adding graphite. Used in interior and exterior thermal insulation systems for buildings (including the Thermoseal System). Suitable for areas requiring extra protection (enhanced waterproofing zone of the Thermoseal system). Advantageous over conventional EPS due to its water repellency, low moisture absorption, but mainly because its energy efficiency offers up to 20% better thermal insulation performance than conventional EPS. Dimensionally stable.

Product Details

  • Panel Dimensions (cm)

    100 x 50

  • Packaging

    m2/Bandle     Thickness mm
    25                           20
    17                           30
    12                           40
    10                           50
    8                             60
    7                             70
    6                             80
    5                            100

  • Identification Code

    EPS-EN13163-T1-L2-W2-S2-P5-DS(N)2-BS150-CS(10)100-TR100 ftk>0,02N/mm2, Gm>1,0 N/mm2

  • Declared value of thermal conductivity (λ)

    λD=0,030 W/m*K
